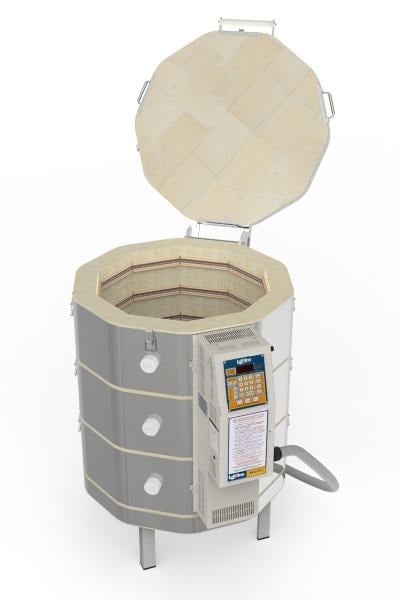

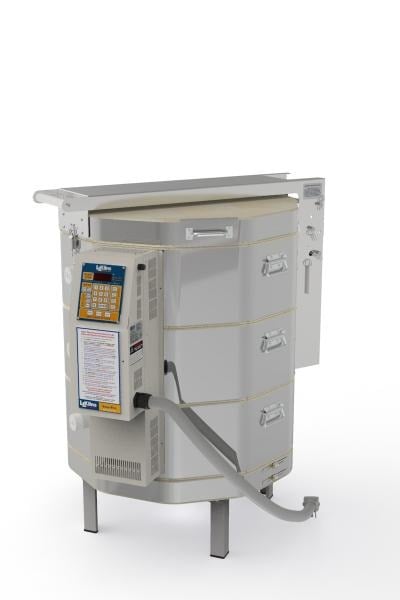

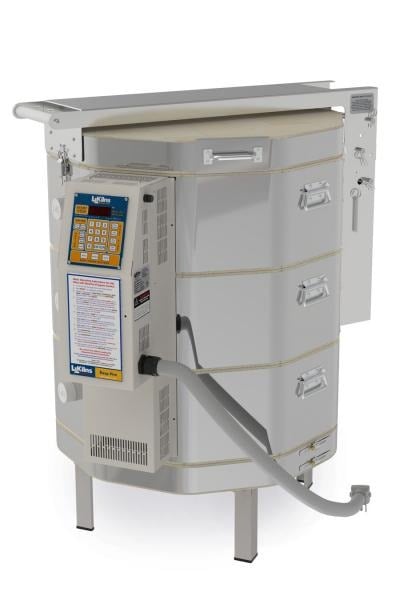

L&L® E23T-3 Electric Kiln
L&L® E23T-3 kilns are large-sized electric kilns ideal for private studios, schools, and production workshops. With the capacity to fit (175 coffee mugs), these kilns are built with industrial-grade components and L&L’s hallmark precision and durability. Known for their superior temperature uniformity, long service life, and easy maintenance, L&L KILNS® offer reliability and performance that ceramic artists and educators trust.

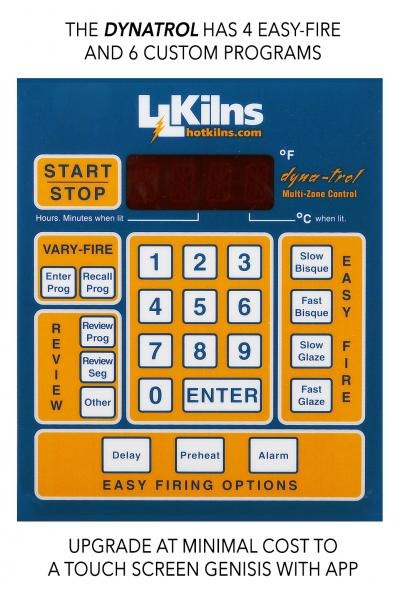

L&L® Genesis™ Touchscreen Controller
Rather than relying on sitter cones or manual switches, L&L KILNS® feature the advanced genesis touchscreen controller, which provides intuitive and precise programming for ceramic firing.
· Cone Fire Mode: Allows users to fire by entering a few simple parameters (cone, speed, hold), enabling repeatable results with minimal input.
· Ramp/Hold Mode: Supports custom programs with up to 32 programmable segments of heating, cooling, and holding, giving complete control over the firing process
· Touchscreen Interface: The full-color touchscreen offers user-friendly navigation, diagnostic alerts, firing logs, and real-time kiln status.
· Wi-Fi Enabled: Enables remote monitoring, data backup, and software updates via the KilnLink system.
DESIGN FEATURES
Body

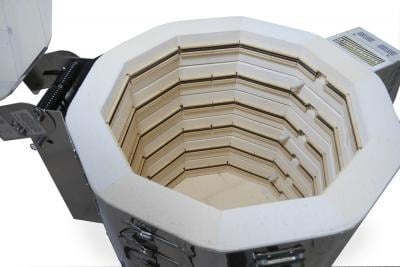

· The kiln chamber is constructed with insulating fire brick, enclosed in a heavy-duty welded steel frame.
· Internal radius: 56.8 cm
· Internal depth: 68.6 cm
· Internal capacity: 189.7 liters

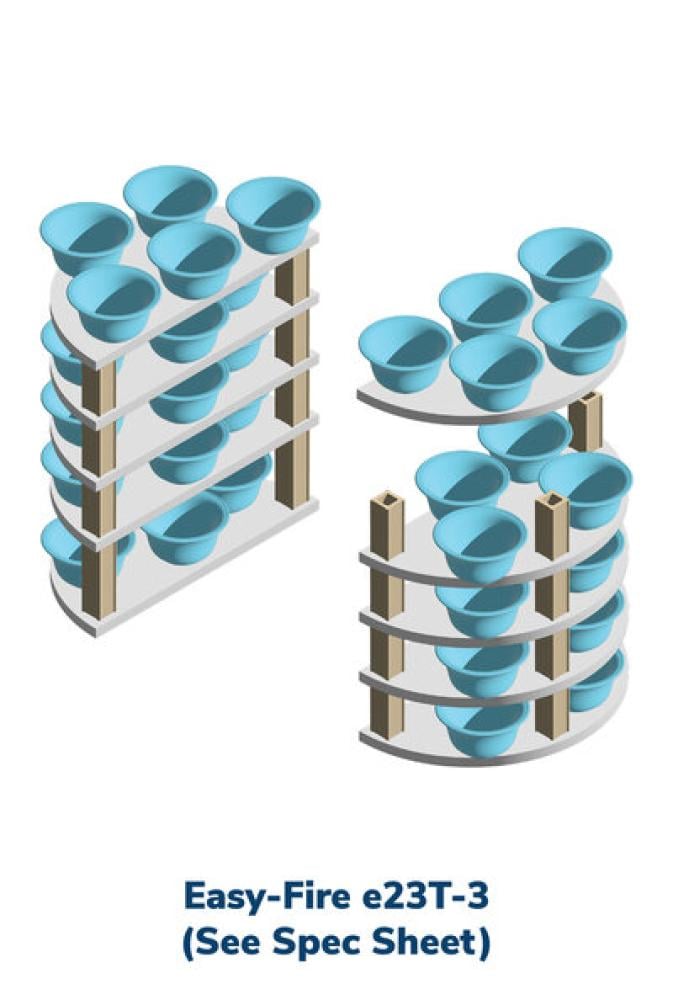

· Firing capacity: 175 coffee mugs
· Maximum temperature: Cone 10 (1305ºC)

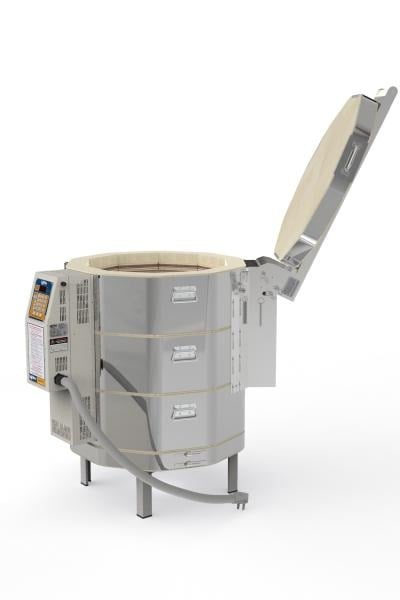

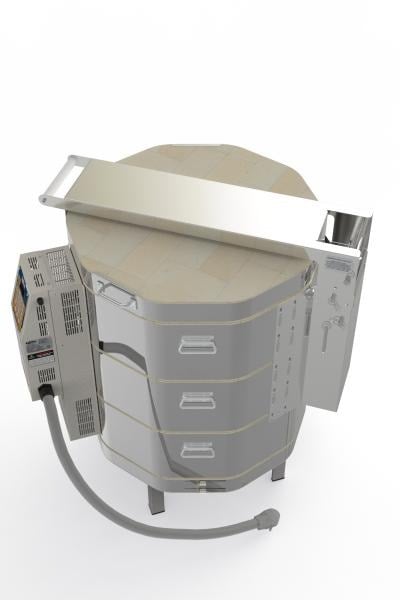

The kiln features L&L’s Dyna-Lift™ lid system for safe and easy lid operation, as well as reversible lid and floor slabs to extend life and performance.
Heating Elements
L&L KILNS® heating elements are made from Kanthal A-1, a high-temperature alloy composed of iron, chromium, and aluminum.
· High-Temperature Resistance: Specifically engineered to withstand repeated high-heat conditions, making it ideal for firing ceramics.
· Durable Performance: Maintains consistent heating performance through numerous heating and cooling cycles.
· Oxidation Resistance: Offers exceptional resistance to oxidation, even under prolonged high-temperature use.
· Long Lifespan: A dependable choice for long-lasting, reliable kiln operation
· Service life: 250–400 firings (depending on use)
Type-K Thermocouple
The Type-K thermocouple is a temperature sensor made from chromel and alumel.
It’s reliable at high temperatures and ensures consistent ceramic results by delivering accurate temperature readings to the kiln controller throughout the firing process.
· L&L kilns use 2 or more thermocouples to insure even heat distribution.
· Service life: 100–200 firings (depending on use)
· Type-S platinum thermocouple upgrades are available upon request.
Delivery Time:
The estimated delivery time for pre-orders is 5-8 months from the order confirmation date.
This estimate is approximate and may be subject to change based on manufacturing and shipping conditions.
Payment Terms:
Customers have two payment options:
Full payment upfront upon order confirmation.
Pay 70% of the order value upfront upon order confirmation, and the remaining 30% upon arrival in Saudi Arabia and prior to delivery.
Order Confirmation:
The order is considered confirmed after the first payment (whether the full payment or 70% of the order value) has been paid.
The factory begins manufacturing procedures once the order is confirmed.
Non-Refundable Down Payment:
The deposit or down payment is non-refundable once the order is confirmed with the factory.
Non-Payment:
If the customer fails to pay the remaining payment by the agreed date, the matter is subject to the store's policy and applicable legal procedures in the Kingdom of Saudi Arabia.
The customer is not entitled to claim the product in this case.
Note:
Prices have been revised as of July 1, 2025, to reflect the new factory prices.
